Technical Specifications
Technical specifications, dimensions, runtime and kit configuration information for the Ritelite Sports-LITE portable sports floodlighting system.
PRODUCT SPECIFICATIONS
- 3M anti-trap, soft descent aluminium tripod.
- Beam controlled sports lensing 6000K daylight white colour.
- Waterproof IP65 rated LED light heads.
- Fast, one person setup in under 1 minute per light with no need for tools or technical knowledge.
- No cables, fuel, emissions or noise.
- Rechargeable lithium battery powered operation up to 4h 20m runtime per charge.
- Low recharge costs - under £1 per 8 light kit.
- 22,000 equivalent lumens light output when comparing light output to other symmetrical lensed beam pattern products.
- Lightweight portable system weighing under 10.5kg per light set.
- Stable in winds up to 25mph without any need for tie downs or ground pegs - ideal for all surfaces and weather conditions.
- Low maintenance, robust and designed for long term use.
- Compact to store and carry. Kits fit in car boots for easy transportation.
beam controlled lensing with low light pollution
Optimised beam controlled lensing delivers bright, consistent sports lighting across the playing surface while minimising light pollution and light spill to surrounding areas. Battery life is maximised with all the light directed where it is needed onto the pitch.

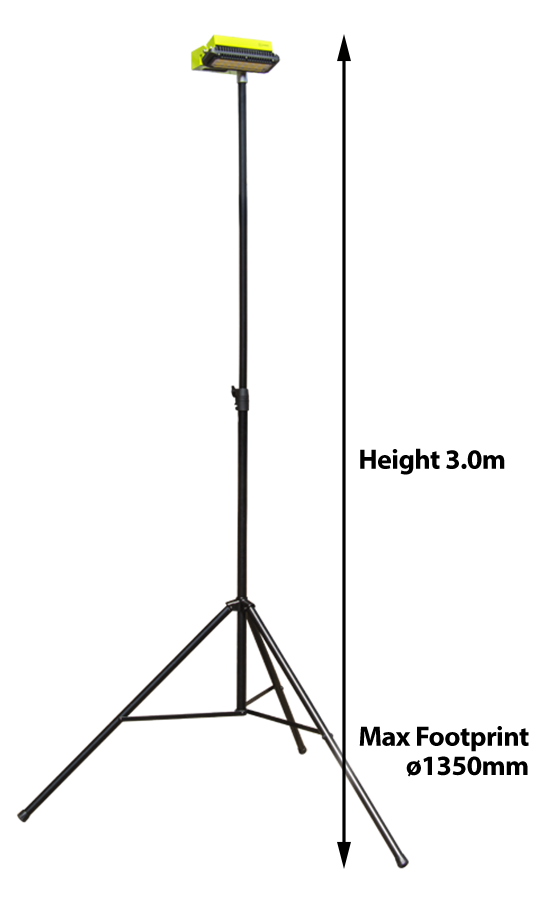

Sports-LITE Dimensions & weights
| SPORTS-LITE WEIGHTS / DIMENSIONS | ||
 |
TOTAL SYSTEM WEIGHT (standard battery) |
<10.5Kg (Light head, battery and 3m tripod) |
 |
TOTAL SYSTEM WEIGHT (high capacity battery) |
<11.5Kg (Light head, battery and 3m tripod) |
| LIGHT HEAD | ||
|
WEIGHT (excluding battery) | 2.88Kg |
| DIMENSIONS (W x H x D) | 300mm x 250mm x 100mm | |
| TRIPOD | ||
 |
WEIGHT | 6.25Kg |
| CLOSED DIMENSIONS | 1540mm x ø140mm | |
| OPEN DIMENSIONS | 3000mm x ø1950mm | |
Sports-LITE battery power & runtime
Select your battery pack and get a quote
The Sports-LITE rechargeable lithium battery packs provide silent, zero-emission power for portable sports lighting with minimal energy required for recharging.
- Single chargers supplied with units as standard
- Optional fast chargers available
- Multi-bank chargers to charge multiple lights from one plug socket
Standard battery packs provide up to 2h 20m runtime, with high-capacity options delivering up to 4h 20m runtime per charge.
| BATTERY TYPE | PRODUCT CODE | BATTERY DURATION / RUNTIME | CHARGE TIMES | |
| STANDARD CHARGER | FAST CHARGER | |||
Power Pack Battery |
LSPL/BATT200 | 2h 20m | 6 hours* | 4.5 hours |
Power Pack+ Battery |
LSPL/BATT370 | 4h 20m | 11.5 hours | 8.5 hours* |
Sports-LITE Charging options
A range of single and multi-bank charging options are available to support different Sports-LITE kit sizes and charging requirements.
Multi-bank charging systems allow multiple battery packs to be recharged from a single power source.
Sports-LITE batteries can be charged in as little as 4.5 hours (charging a standard battery with the high power charger) at a low cost - an 8 light kit can be fully recharged at a cost of under £1.
Choose your charger and get a quote:
Sports-LITE kit contents
Each Sports-LITE training kit includes portable IP65 waterproof LED light heads, tripods, rechargeable battery packs, chargers and waterproof, durable, storage bags for easy transport and setup
| SPORTS-LITE 2 KIT CONTENTS | ||||||
 |
 |
 |
 |
|||
2x SPORTS-LITE Light Heads with removable lithium battery packs |
+ | + | 2x Battery Chargers |
+ | 1x SPORTS-LITE Light Head Carry Bag |
|
Multibank Options Available For Larger Kit Sizes |
 |
|||||
2x 3m Tripod |
 |
1x SPORTS-LITE 3m Tripod Carry Bag |
||||
Sports-LITE Training Kit Options
Sports-LITE training kits are available in multiples of 2, with kit sizes to meet every budget and training area size. Common kits sizes are shown below. Sports-LITE kits are scalable and can grow as your club, team or budget grows.

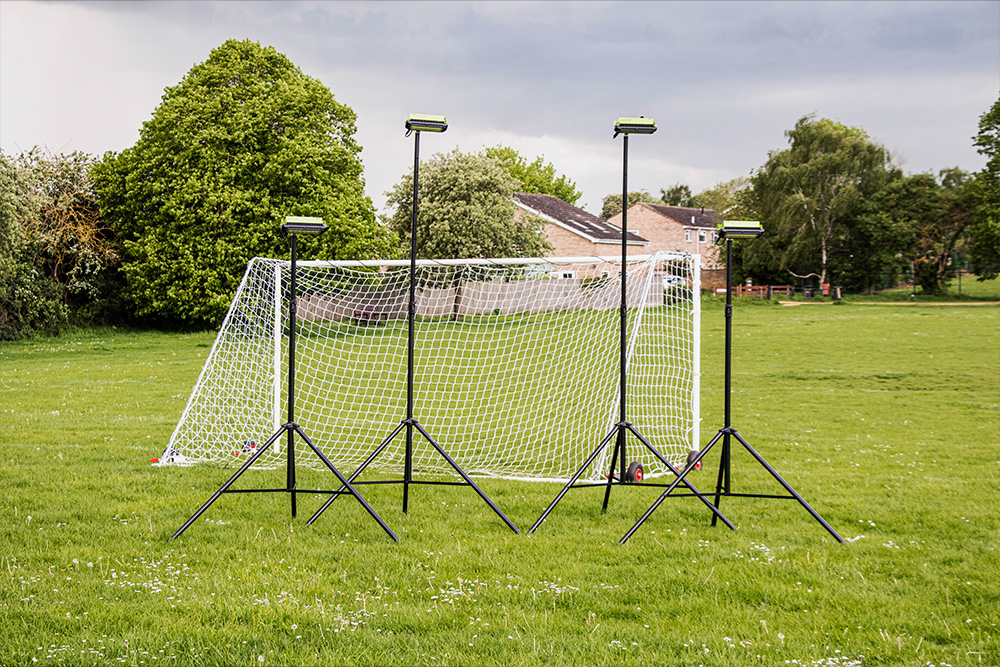

4 x Sports-LITE
Training Kits

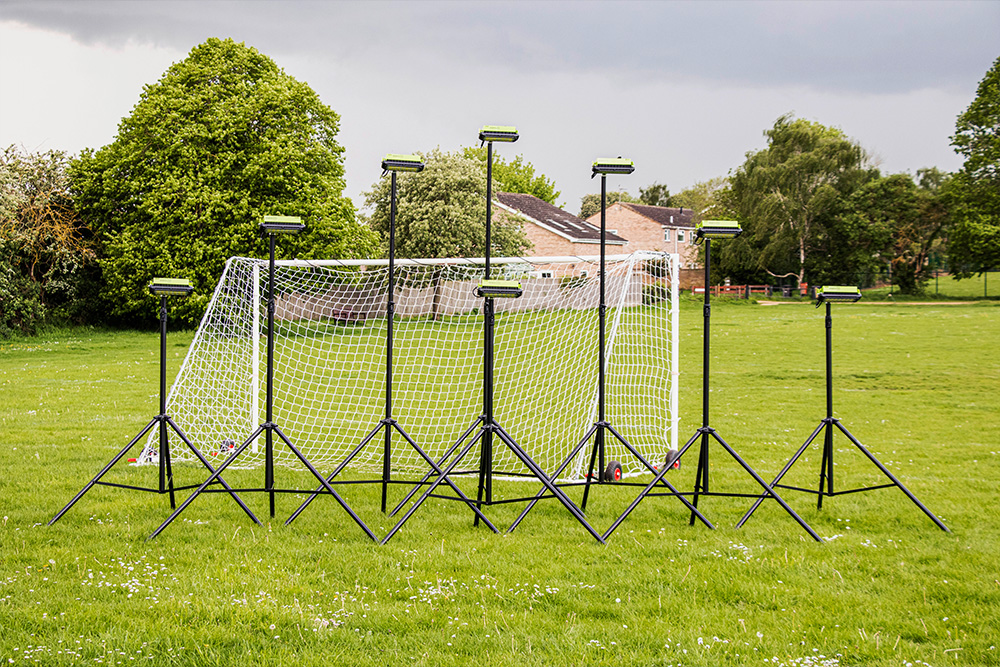

8 x Sports-LITE
Training Kits

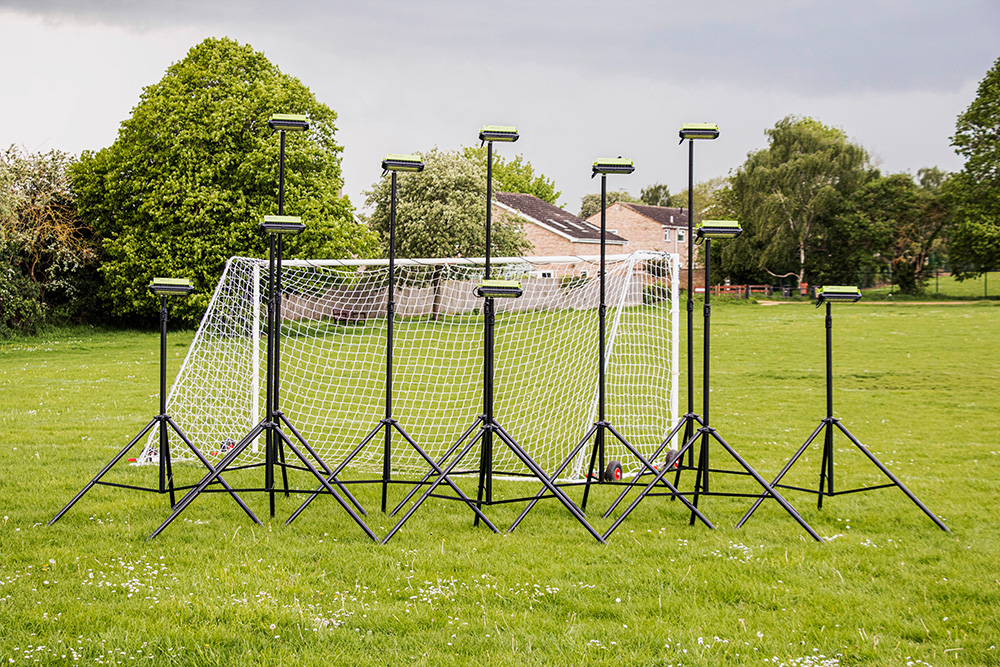

10 x Sports-LITE
Training Kits

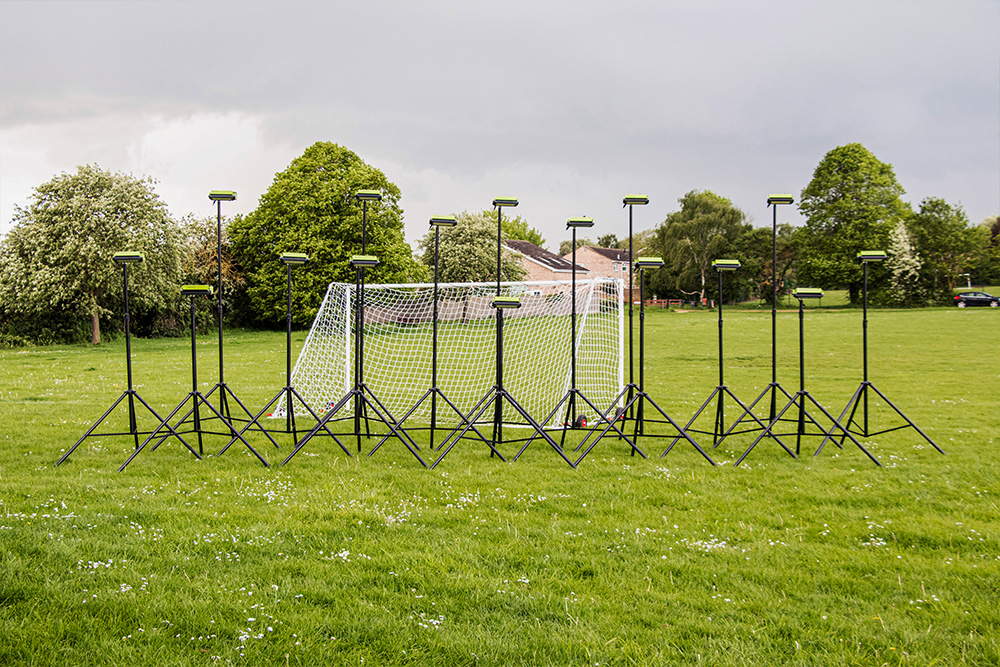

16 x Sports-LITE
Training Kits
Sports-LITE quick one person setup
Accessories
A range of accessories are available to support transport, storage, stability and court or pitch installation requirements
SPEAK TO AN EXPERT
DOWNLOAD THE SPORTS-LITE BROCHURE
SPORTS-LITE PRODUCT SUPPORT
SPORTS-LITE FAQs
NEED HELP CHOOSING THE RIGHT KIT?

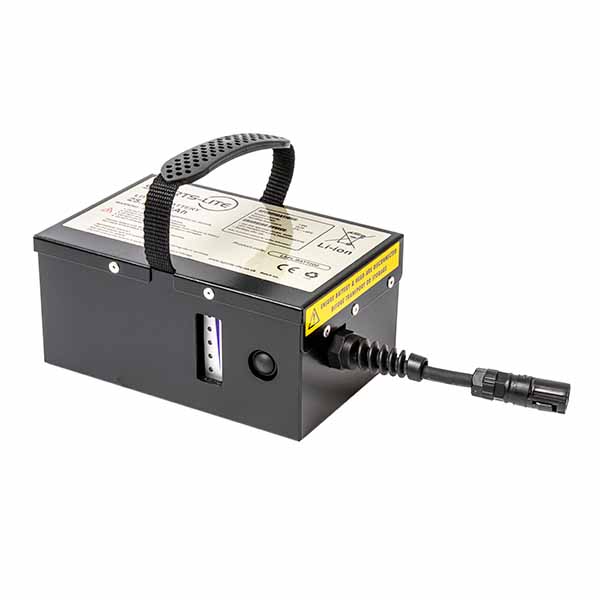

POWER PACK BATTERY (2h 20m)
LSPL/BATT200
DESCRIPTION
A rechargeable lithium battery pack with a max 2h 20m duration, complete with in-built battery level indicator

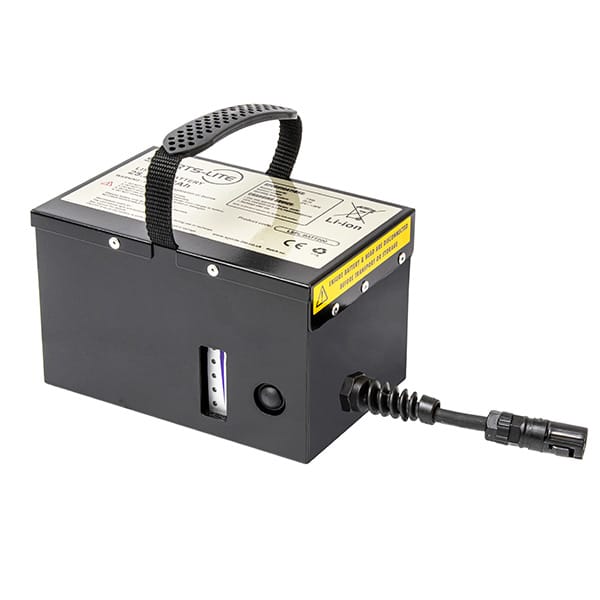

POWER PACK+ BATTERY (4h 20m)
LSPL/BATT370
DESCRIPTION
A rechargeable lithium battery pack with a max 4h 20m duration, complete with in-built battery level indicator
STANDARD CHARGER
LSPL/CHARGER150
DESCRIPTION
A standard battery charger for charging the lithium battery pack in the Sports-Lite head.
FAST CHARGER
LSPL/CHARGER200
DESCRIPTION
Sports-LITE fast battery charger for charging the Sports-Lite battery packs at a faster rate
4 MULTI-WAY BATTERY CHARGERS
LSPL/4WAYCHARGER150
DESCRIPTION
A 4-way battery charger for charging the lithium battery packs in the Sports-Lite heads.

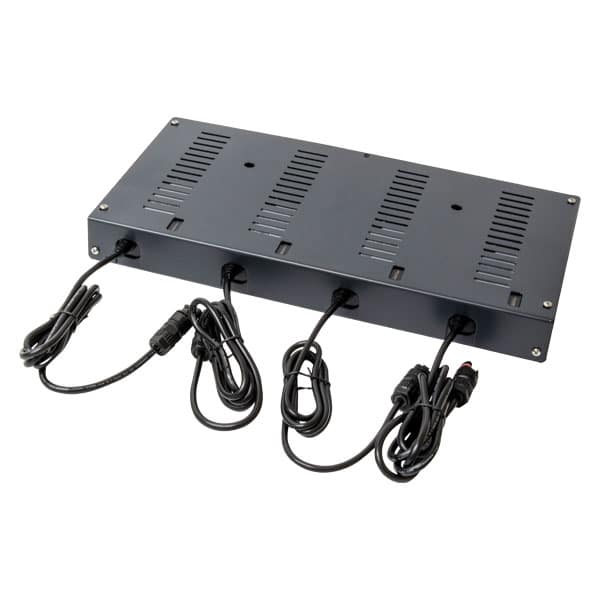

4 MULTI-WAY FAST CHARGERS
LSPL/4WAYCHARGER200
DESCRIPTION
A 4-way fast charger for charging the lithium battery packs in the Sports-Lite heads.

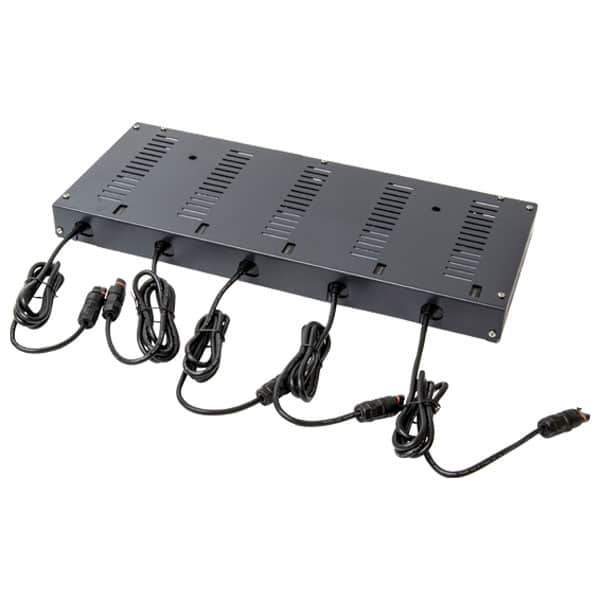

5 MULTI-WAY BATTERY CHARGERS
LSPL/5WAYCHARGER
DESCRIPTION
A 5-way battery charger for charging the lithium battery packs in the Sports-Lite heads.
5 MULTI-WAY FAST CHARGERS
LSPL/5WAYCHARGER200
DESCRIPTION
A 5-way fast charger for charging the lithium battery packs in the Sports-Lite heads.
6 MULTI-WAY BATTERY CHARGERS
LSPL/6WAYCHARGER150
DESCRIPTION
A 6-way battery charger for charging the lithium battery packs in the Sports-Lite heads.

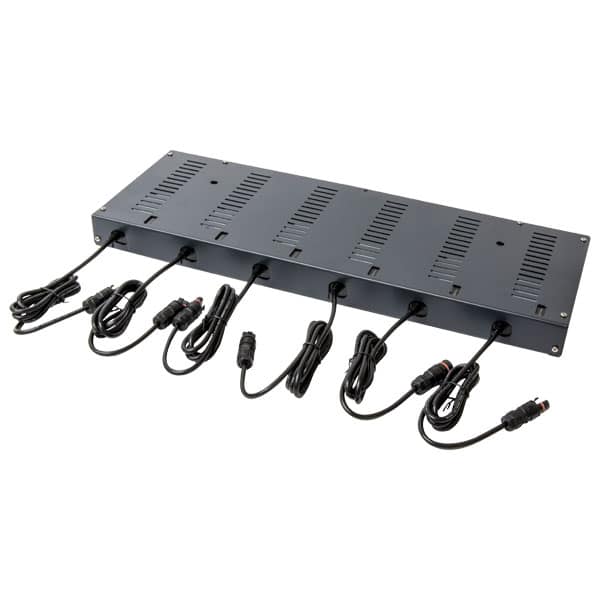

6 MULTI-WAY FAST CHARGERS
LSPL/6WAYCHARGER200
DESCRIPTION
A 6-way fast charger for charging the lithium battery packs in the Sports-Lite heads.
TRIPOD
LSPL/TRIPOD
DESCRIPTION
A light weight tripod for use with the Sports-Lite rechargeable LED light head. Can be setup in seconds and will raise the light head to 3 metres. It also has an air cushioned mast for a slow and safe descent. Dimensions – closed 1500mm. Open 3055mm (tripod only). Maximum footprint 1350mm. Weight 6kg.
STABILITY KIT
LSPL/STABILITYKIT
DESCRIPTION
The Sports-Lite stability kit is a ballast bag which is attached to the centre of the tripod. Fill with your own ballast up to 10kg. The Sports-Lite will be stable up to 35mph (25mph without).

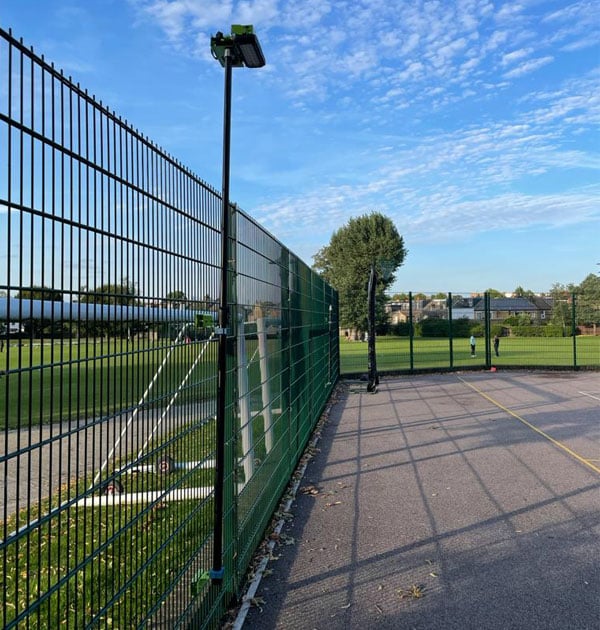

FENCE ADAPTOR
LSPL/FENCEADAPTOR
DESCRIPTION
The Sports-Lite fence adaptor is an easy to fit height adjustable mast which can be fixed to sports fencing poles within minutes as a semi-permanent mast. This adaptor eliminates the need for tripods on the court in run off areas and significantly reduces the amount of kit needed to setup. Once fitted simply attach your Sports-Lite light head to the top and raise up to full height. Light heads can then be easily removed from the bracket after use for security and ease of charging.

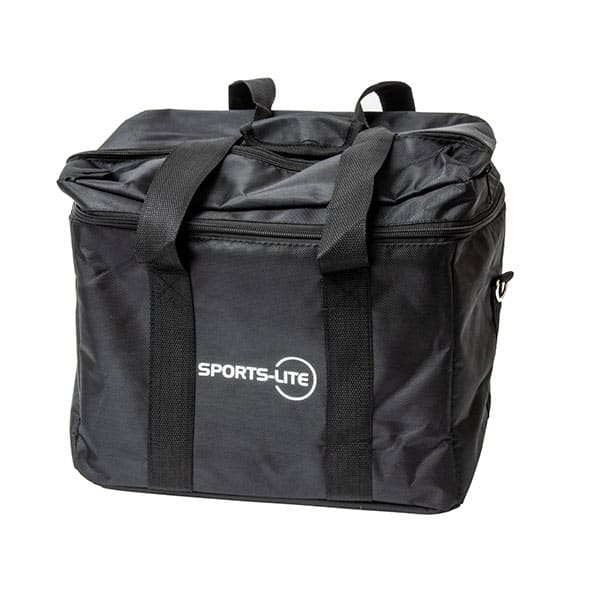

LIGHT HEAD STORAGE BAG
LSPL/HEADBAG
DESCRIPTION
A light weight padded bag for transporting up to two Sports-Lite light heads. It has an extra storage pocket within the lid for storing any accessories or manual.
TRIPOD STORAGE BAG
LSPL/TRIPODBAG
DESCRIPTION
A light weight bag for transporting up to two Sports-Lite tripods. Integral velcro straps to hold tripods in place securely during transport.
FENCE KIT PADDING
LSPL/FENCEKITPADDING
DESCRIPTION
Sports-LITE fence kit padding helps increase player protection when installing Sports-LITE training lights on the inside of fenced sports areas such as tennis, netball, basketball, football and other multi use games areas with a Sports-LITE Fence Adaptor.
